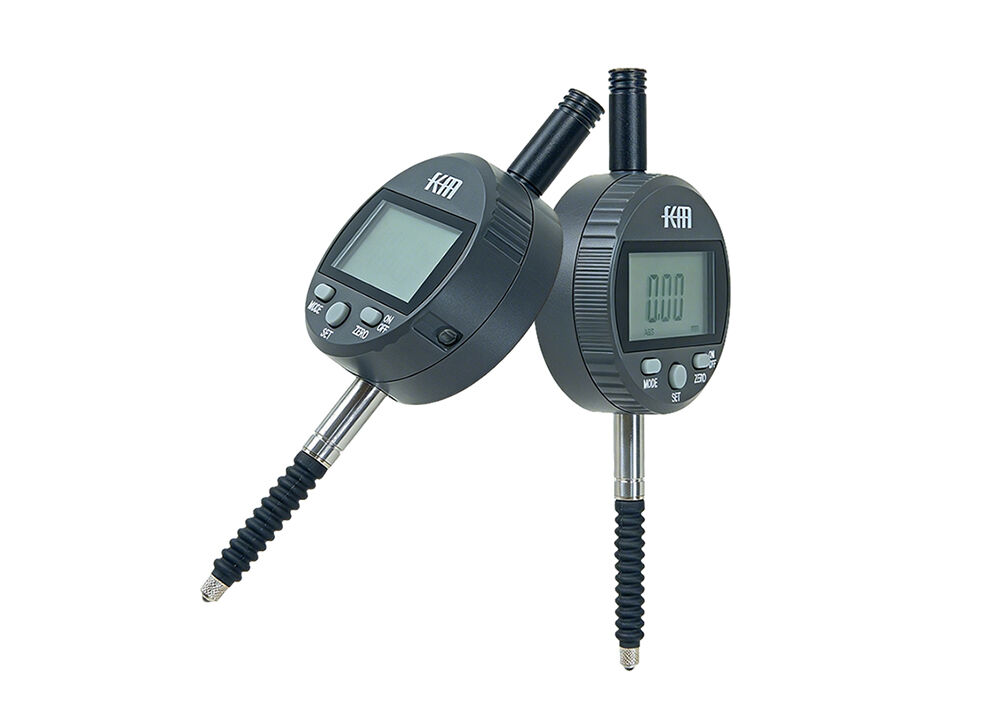

Factory Direct 0-12.7mm/0-0.5" IP65 Protection Degree Digital Dial Indicator with Data Output for Production Line Inspection

Factory Direct 0-12.7mm/0-0.5" IP65 Protection Degree Digital Dial Indicator with Data Output for Production Line Inspection

Description:

Digital indicator mainly used to check the variation in tolerance during the inspection process of a machined part, measure the

deflection of a beam or ring under laboratory conditions, as well as many other situations where a small measurement needs to

be registered or indicated.

IP54 digital dial indicator has large LCD display, which can measure the dimensions of objects quickly and accurately, and we

can easily obtain measurement results by simply looking at the numbers on the display, without the need for complex calculations

or conversions.

Digital gauge has high resolution 0.001mm/0.00005’’, available with measuring range 0-12.7mm/0-0.5’’,0-15mm/0-0.6’’,

0-25.4mm/0-1’’, 0-50mm/0-2’’.

Quick Detail:

1. IP65 and IP54 protection degree.

2. Large digital display.

3. in/mm, ABS/INC, Preset, ON/OFF, ZERO setting function buttons.

4. Flat back or lug back for mounting purposes.

5. Data output.

Specification:

Applications:

1. Measure the size of parts in the machining industry, with high measurement accuracy and small error.

2. Measure a variety of flat objects, including plates, tires, or wheels.

3. Measure parameters such as the size and roundness of a round object. It can measure both external and internal

    circles with high measurement accuracy and has a wide range of applications in wheels, bearings, shafts and other fields.

4. Measure the hardness of different materials. In the field of industrial production, hardness testing is very important,

    especially in the quality control of parts produced by steel, aluminum and other metal materials.

5. Measure the depth parameters of an object. For example, it can be used to measure the depth of oil wells,

    the depth of ground pipes laid in buildings, and so on.

Precautions:

1. Keep indicator face clean, prevent liquid from getting into inside.

2. Avoid shocks, impact, dropping, etc., otherwise it will damage the appearance and precision.

3. Do not operate indicator in direct sunlight. Do not store indicator in an area of extreme high or cold temperature.

4. Do not connect any part of digital indicator with voltage, otherwise it will damage the circuit.

5. Do not remove end lid without using output interface. Output end should never be connected with metal.

    Doing this could damage your indicator.

6. Must take out of the battery if not in use for a long time.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
