Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut

Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut

Sản phẩm - Máy đo micrometer - Đầu micrometer
  • Làm nổi bật

    Clamp Nut Micrometer Head

    ,

    0-0.25" Micrometer Head

    ,

    0.001'' Graduation Micrometer Head

  • Bảo hành
    một năm
  • Tên sản phẩm
    Đầu micromet
  • Đo lường
    Inch
  • Mua sắm
    0-0,25"
  • Tốt nghiệp
    0,001''
  • Sự chính xác
    ±0,0002"
  • Đo mặt
    Mặt phẳng mặt
  • Thân cây
    Với đai ốc kẹp
  • Phương pháp đo lường
    Thủ công
  • Bưu kiện
    Hộp ABS
  • Nguồn gốc
    Thiểm Tây, Trung Quốc
  • Hàng hiệu
    KM
  • Chứng nhận
    ISO DIN GB RoHS
  • Số mô hình
    KM-3902-31
  • chi tiết đóng gói
    Hộp ABS 17*10*5cm/Cái 0.30kg/Cái
  • Thời gian giao hàng
    Trong vòng 15 ngày
  • Điều khoản thanh toán
    L/C, D/A, D/P, T/T, Liên minh phương Tây
  • Khả năng cung cấp
    50000 chiếc / tháng

Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut

  • Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
  • Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
  • Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut
Nhận giá Liên hệ với bây giờ
Micrometer Head 0-0.25" Range 0.001" Graduation ±0.0002" Accuracy Flat Face with Clamp Nut

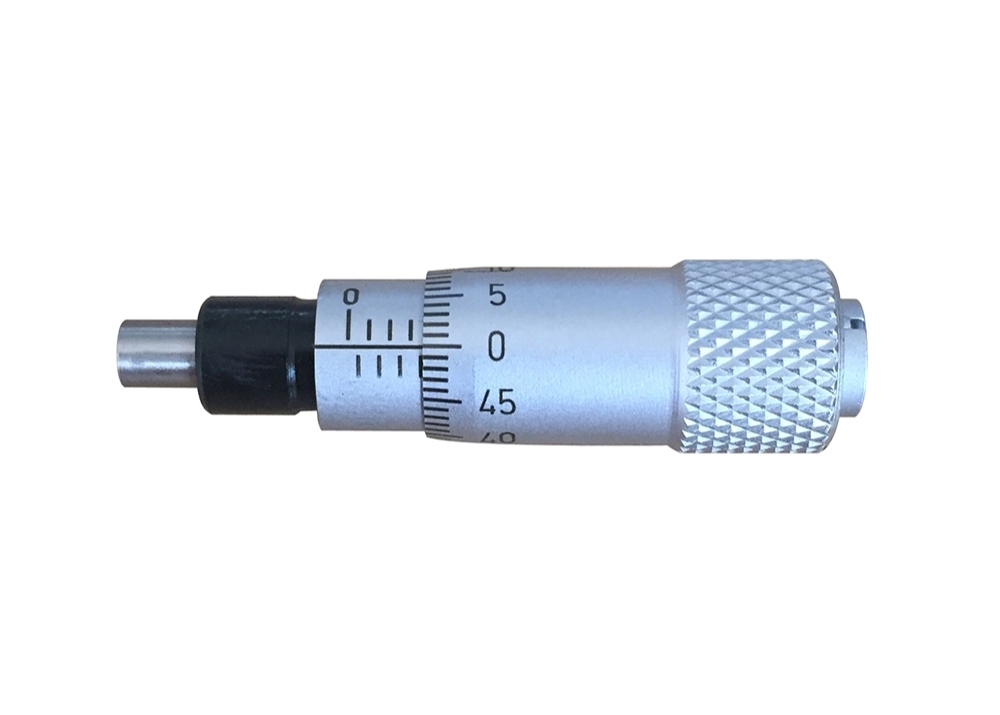

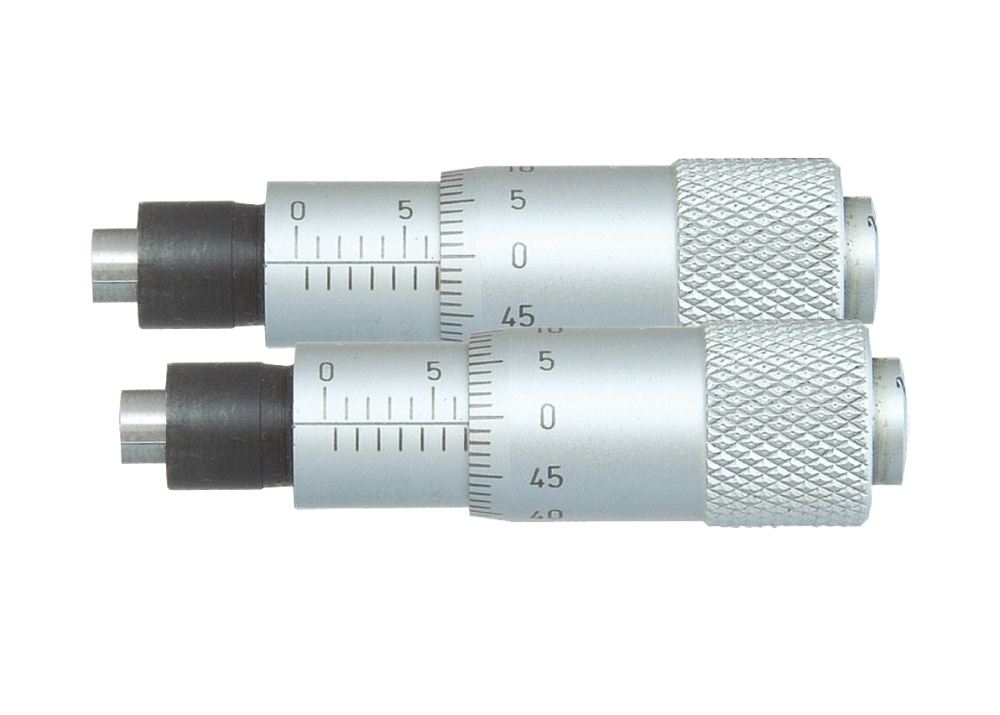

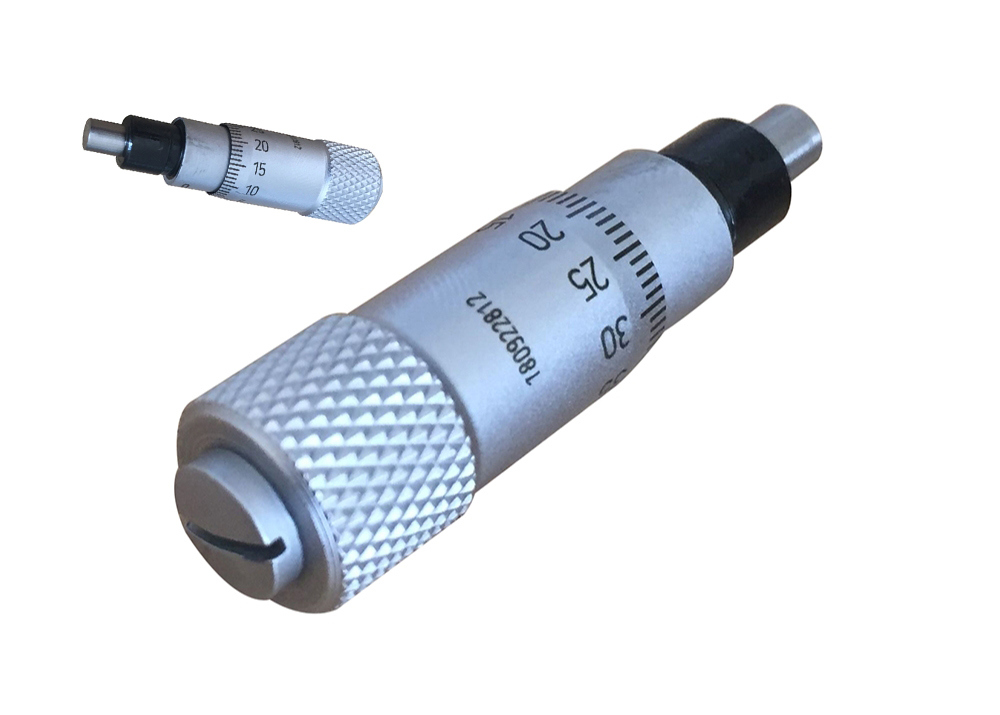

This precision micrometer head features a 0-0.25" measurement range with 0.001" graduation and ±0.0002" accuracy. The carbide-tipped spindle provides exceptional flatness, accuracy, and durability, while the ratchet thimble mechanism ensures consistent measurement force.
Key Features
  • Available in both Metric and Inch models
  • 9.4mm thimble diameter for comfortable operation
  • 6.5mm spindle range with 3.5mm diameter
  • Laser-etched scale for clear, precise readings
  • Options for flat or spherical measuring faces
  • Available with or without installation nut
  • Carbide measuring face enhances precision and durability
  • Includes protective case for safe storage
  • Total length: 37mm (mic head) / 61mm (full assembly)
Technical Specifications
Order No. Measuring Range Graduation Accuracy Measuring Face Type
KM-3902-11 0-0.25" 0.001" ±0.0002" Flat Plain
KM-3902-21 0-0.25" 0.001" ±0.0002" Spherical
KM-3902-31 0-0.25" 0.001" ±0.0002" Flat With clamp nut
KM-3902-41 0-0.25" 0.001" ±0.0002" Spherical
Industrial Applications
  • Optics: Precision control in DVD/CD production and inspection equipment
  • Liquid Crystal Projection: Prismatic positioning and film loading processes
  • Fiber Optic Technology: Ensuring accuracy in optical communication systems
  • LCD Manufacturing: High-precision equipment adjustment and testing
  • Semiconductor Industry: Production and inspection equipment applications
  • Mechanical Engineering: Machine tool adjustments and precision gages
Operation Guidelines
  • Perform precise calibration before initial use
  • Select appropriate measurement range (0-5mm, 0-13mm, etc.)
  • Maintain perpendicular alignment with measured object
  • Ensure stable contact before taking readings
  • Read measurements vertically to avoid angle deviations
Customization & Support
We offer customization services for special applications, including custom spindle tips and precision lead screws manufactured to your specifications.
Frequently Asked Questions

Manufacturer: Deko Corporation, specializing in precision measuring tools

Shipping Terms: FOB, CFR, CIF, EXW available

Payment Methods: T/T, L/C, D/A, D/P, PayPal, Western Union

Warranty: 1-year warranty with replacement service for defective parts
