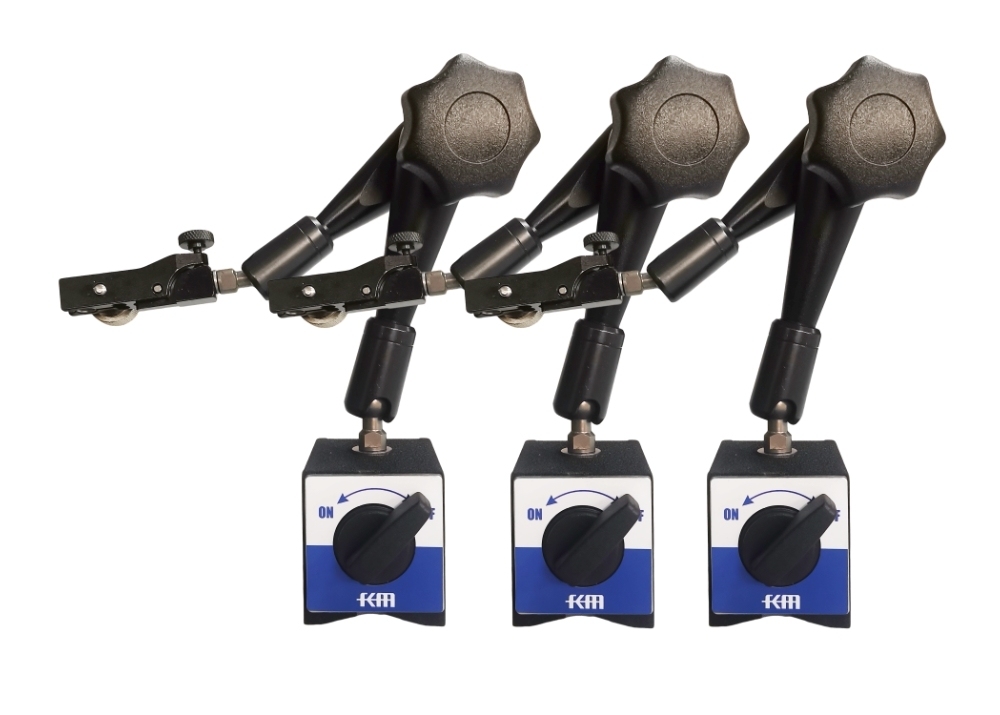

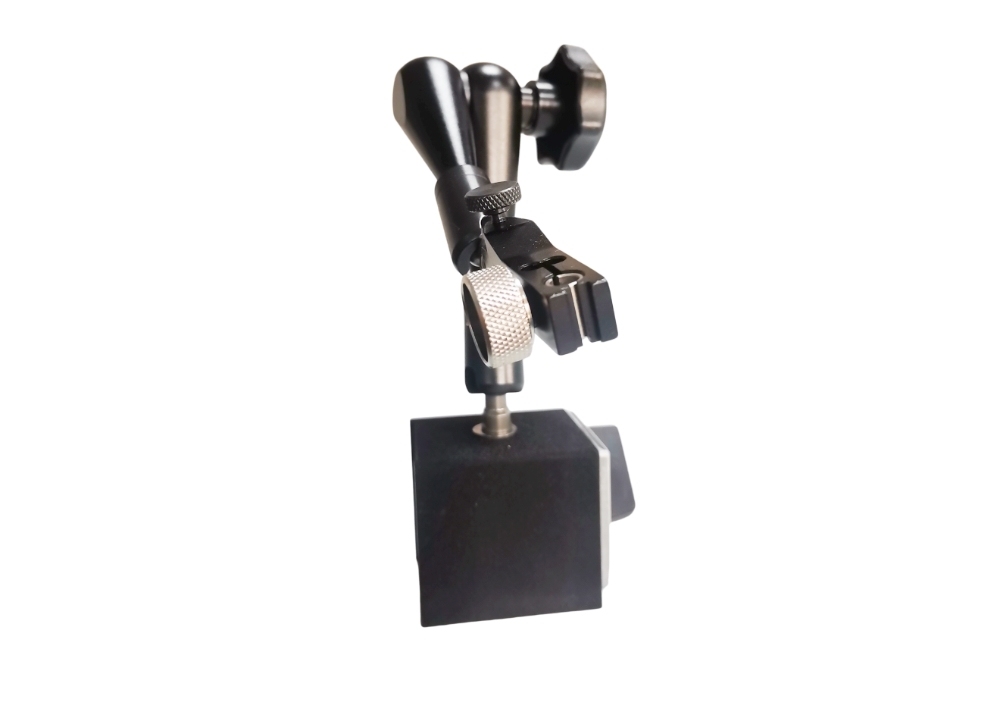

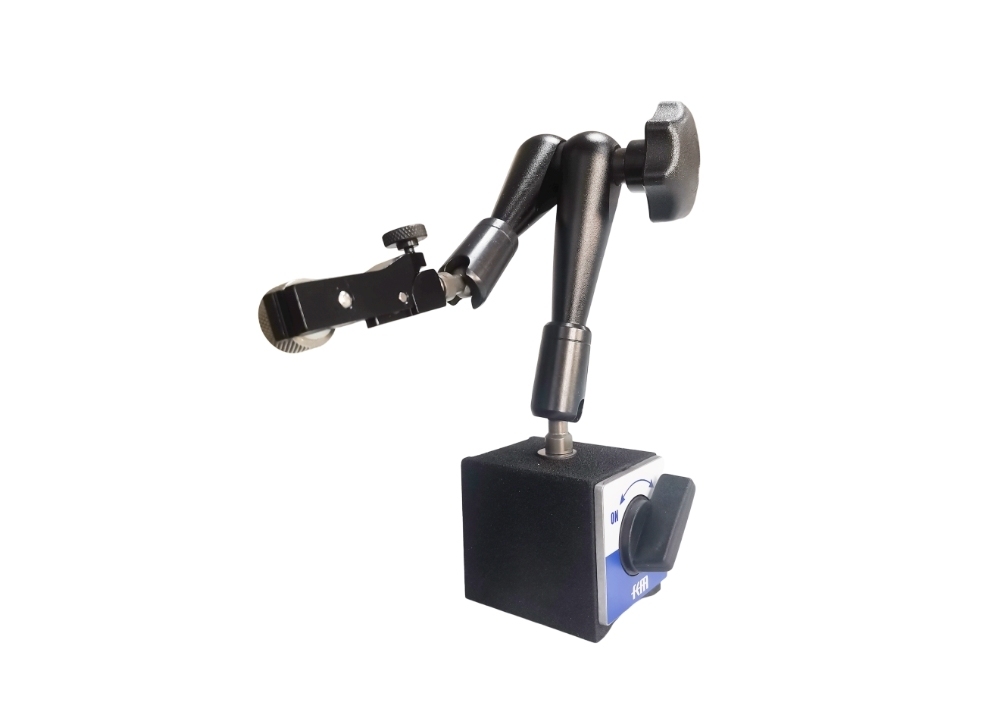

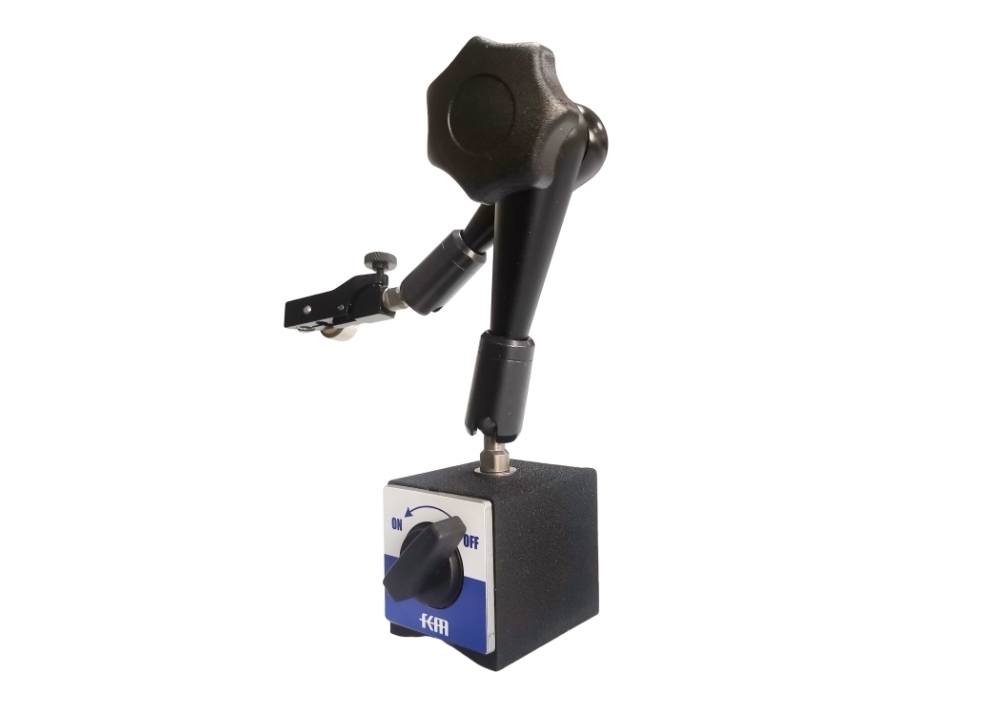

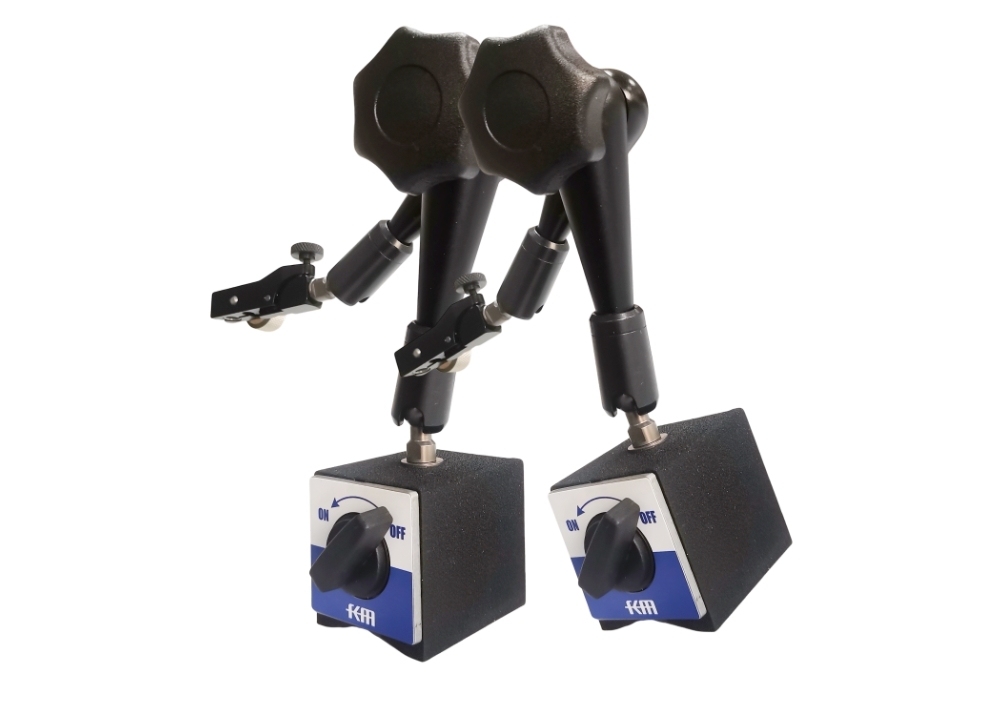

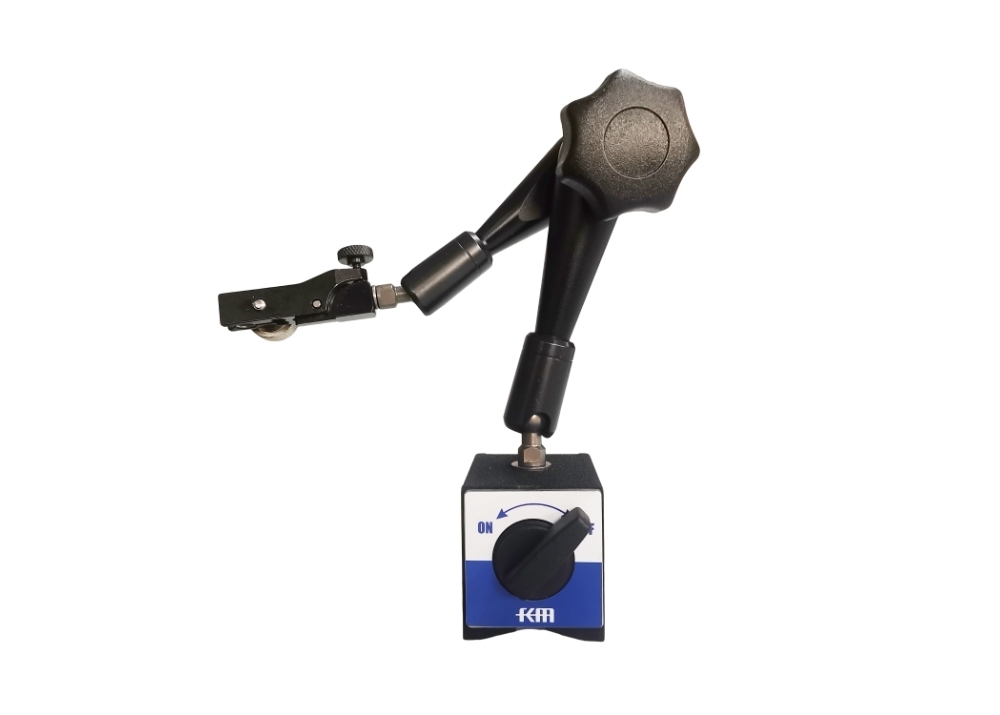

Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
-
Làm nổi bật
80kg Dial Indicators Magnetic Base Holder
,Stainless Steel Magnetic Base Holder Stand
,Fine Adjustment Magnetic Base Holder Stand
-
Bảo hànhMột năm
-
KiểuĐế từ
-
Vật liệuThép không gỉ
-
Màu sắcĐen
-
Cơ chếCơ chế khóa
-
Chức năngĐiều chỉnh tốt
-
Lực từ80kg
-
Đế(L×W×H)60×50×55mm
-
Chiều dài cánh tay295mm
-
Bưu kiệnHộp giấy
-
Nguồn gốcShaanxi, Trung Quốc
-
Hàng hiệuKM
-
Chứng nhậnISO DIN GB RoHS
-
Số mô hìnhKM-603-03
-
chi tiết đóng góiHộp Giấy 25*14*9cm/Cái 1.50kg/Cái
-
Thời gian giao hàngTrong vòng 15 ngày
-
Điều khoản thanh toánT/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
-
Khả năng cung cấp50000pieces/tháng
Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
Fine Adjustment & Strong Hold 80kg Stainless Steel Magnetic Base Holder Stand for Dial Indicators
Product Description
Our premium mechanical universal magnetic base stand features a super strong arm lock system with hardened high-class steel wear parts (HRC 58°+), precision-machined on CNC lathes. This forced locking magnetic base delivers 50kg to 100kg holding force for secure attachment to ferromagnetic surfaces, providing a stable platform for precision measurement tools. Includes fitted case for protection during transport and storage.
Key Features
- Advanced locking mechanism with reinforced arm lock
- Convenient ON/OFF magnetic switch
- Precision fine adjustment for higher accuracy
- Dovetail groove compatible with test indicators
- Universal clamp hole for both metric and inch indicators
Technical Specifications
| Order No. | Magnetic Force | Applicable Holding Stem Dia. | Base (L×W×H) | Arm Length | Overall Length |
|---|---|---|---|---|---|
| KM-603-01 | 50kg | 6mm/8mm, Dovetail | 40×40×40mm | 182mm | 222mm |
| KM-603-02 | 50kg | 6mm/8mm, 3/8"/Dovetail | 40×40×40mm | 220mm | 260mm |
| KM-603-03 | 80kg | 6mm/8mm, 3/8"/Dovetail | 60×50×55mm | 295mm | 350mm |
| KM-603-04 | 100kg | 6mm/8mm, 3/8"/Dovetail | 73×50×55mm | 355mm | 410mm |
| KM-603-05 | 100kg | 6mm/8mm, 3/8"/Dovetail | 73×50×55mm | 415mm | 470mm |
Industrial Applications
Essential for machine building applications, our magnetic stand is widely used for inspecting machine tool accuracy, workpiece dimensional accuracy, flatness measurements, and detecting concentricity and parallelism during assembly processes to ensure product quality and performance.
Usage Guidelines
- Place on flat, dry, non-magnetic surfaces only
- Adjust to proper position before fixing measured objects
- Minimize vibration and interference during measurements
- Perform regular maintenance checks and timely repairs
Company Information
About Deko Corporation
Specializing in KM brand precision measuring tools, we develop, manufacture and market high-quality measurement solutions in China.
Product Range
Dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, and levels.
Trade Terms
We support FOB, CFR, CIF, and EXW shipping arrangements.
Payment Options
Accepting T/T, L/C, D/A, D/P, PayPal, and Western Union.
