Precision Thread Plug Gauge GO and NOGO Set Hardened Steel Quality Control
-
Làm nổi bật
Precision Thread Plug Gauge
,Hardened Steel Thread Plug Gauge
,GO NOGO Thread Plug Gauge
-
Bảo hànhMột năm
-
KiểuMáy đo cắm luồng số liệu
-
Vật liệuThép công cụ
-
Tiêu chuẩn phù hợpDIN13
-
Đặc điểm kỹ thuật chủ đềM24x1.5-6H ĐI NOGO
-
Sự chính xác5g, 5h, 6g, 6h, 7g, 7h, v.v.
-
Cách sử dụngđể làm việc và kiểm tra
-
Đối tượng đo lườngKiểm tra lỗ ren hoặc khai thác, v.v.
-
Bưu kiệnHộp ABS
-
Nguồn gốcShaanxi, Trung Quốc
-
Hàng hiệuKM
-
Chứng nhậnISO DIN GB RoHS
-
Số mô hìnhKM-P240
-
chi tiết đóng góiHộp ABS 15*3.5*3.5cm/Cái 0.25kg/Cái
-
Thời gian giao hàngTrong vòng 15 ngày
-
Điều khoản thanh toánT/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
-
Khả năng cung cấp50000pieces/tháng
Precision Thread Plug Gauge GO and NOGO Set Hardened Steel Quality Control
Precision Thread Plug Gauge GO and NOGO Set Hardened Steel Quality Control

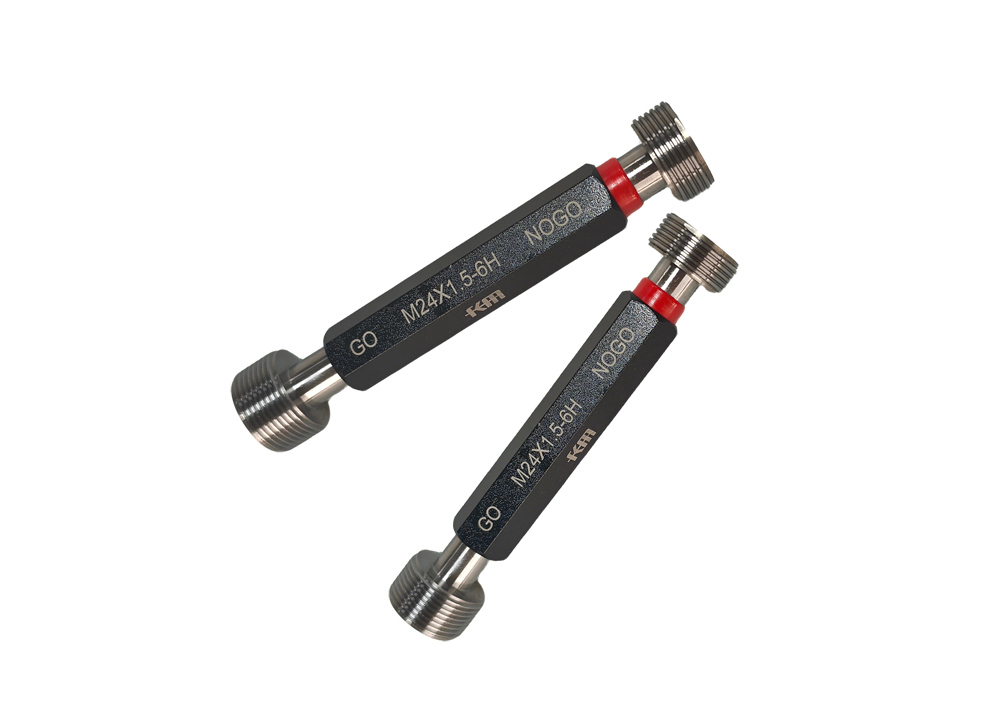

These metric plug ring gauges are metrology tools used for checking threaded or tapped holes, verifying the proper thread type, major diameter, minor diameter, pitch diameter, and pitch of the thread against a mating thread gauge.
We introduced internal first-grade thread machining center and measuring equipment to provide high precision thread ring gauges to customers worldwide. Plug gauges provide fast results and have the advantage that users can be easily trained on their use as they rely on a simple working principle.

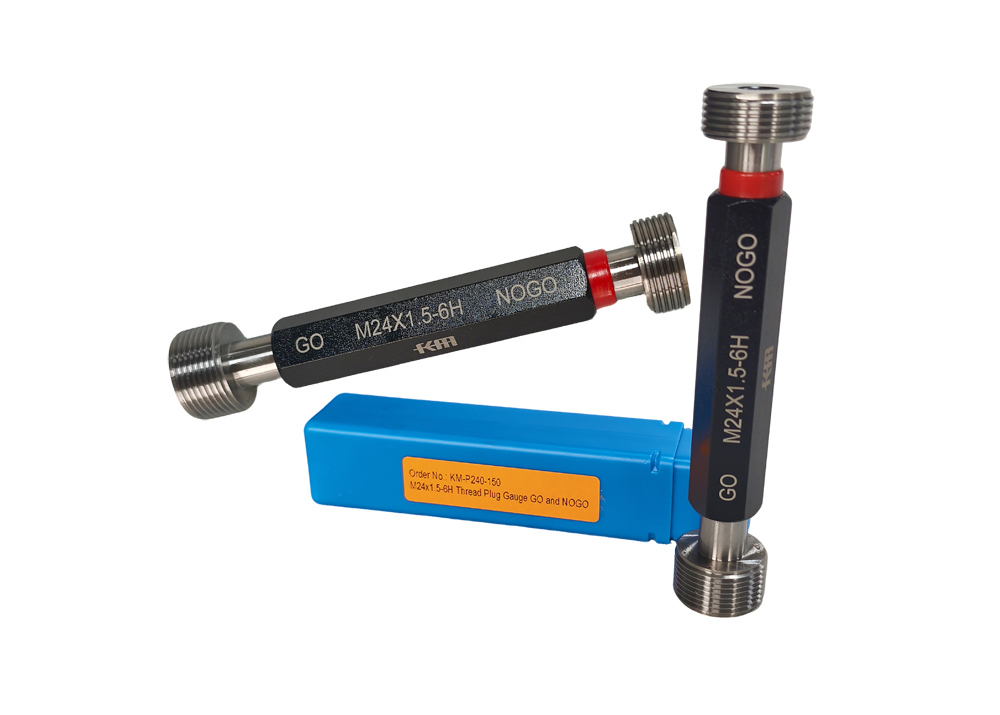

For small threaded parts, the gauge will be double-ended, with one end carrying the GO gauge and the other end the NOGO. For larger parts, the two may be separate pieces. To pass inspection, the GO gauge should pass through the entire length of the nut without requiring excessive rotational force. The NOGO gauge should enter no more than 2 turns and not go beyond this.
Quick Detail
- Metric thread plug gauge.
- Accuracy: 5g,5h, 6g,6h,7g,7h, etc.
- GO and NO GO and combination GO/NOGO types.
- Conforms to standard: DIN13.
- Wear resistance and corrosion resistance, stable structure, easy to use.

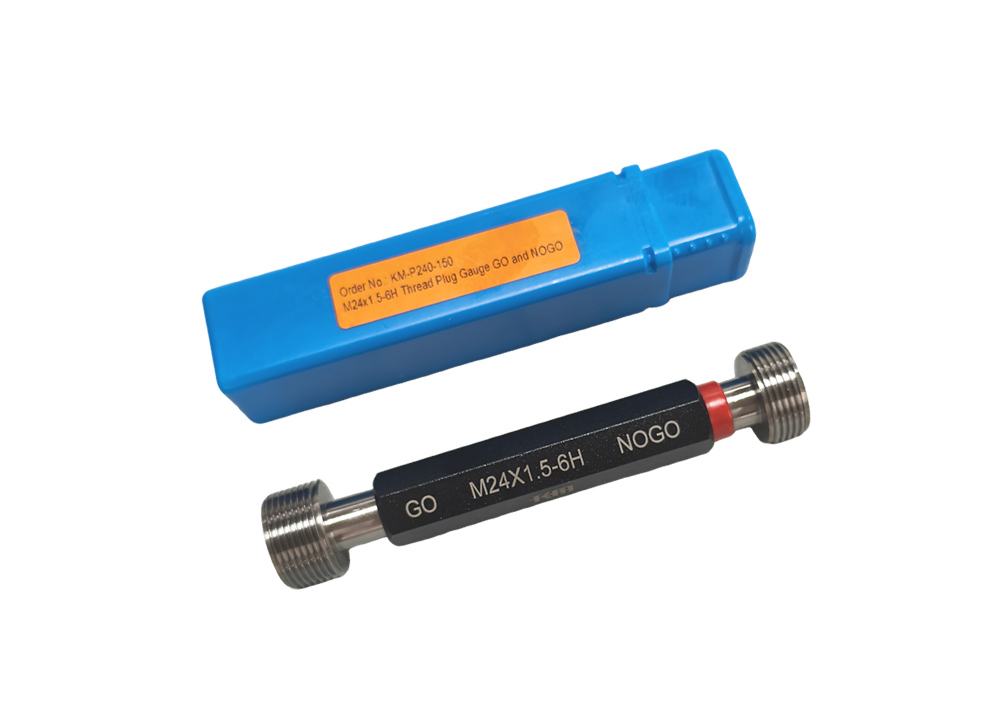

- Supplied in fitted case.
Specification
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
The thread plug gauge is a tool mainly used to inspect and judge whether thread size is qualified. They are widely used in automobile manufacturing, aerospace, machining and electronic processing for inspecting various standard and non-standard thread products to improve thread accuracy and ensure product quality.
Precautions
- Do not touch the working surface of the plug ring gauge with your hands to prevent rust.
- During use, place the gauge on an appropriate surface (tool cabinet or wooden backing plate), not on machine tool holders or guide rails.
- Inspect regularly for damage, rust or deformation. If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil.
- Do not store working surfaces of two plug ring gauges together to prevent sticking.
- After use, wipe clean and store under dry conditions.
FAQ
Who are we?
Deko Corporation mainly dedicates to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, level, etc.
How about after-sales service?
One year warranty for all products. If you find any defective accessories when receiving goods, we will ship replacement parts or products. As an experienced manufacturer, we have strict calibration and inspection processes to ensure product quality.
