Digital Indicator High Precision Meter with SPC Output for Quality Control
-
Làm nổi bật
high precision digital indicator
,SPC output quality control meter
,digital indicator with SPC output
-
Bảo hànhMột năm
-
KiểuChỉ số kỹ thuật số
-
Đo lườngSố liệu/inch
-
Phạm vi0-25.4mm/0-1"
-
Nghị quyết0,001mm/0,00005 "
-
Mặt sauMặt sau phẳng và mặt sau có Lug
-
Lực đo tối đa1,6n
-
NắpNắp cố định và di chuyển
-
Bưu kiệnHộp ABS
-
Nguồn gốcShaanxi, Trung Quốc
-
Hàng hiệuKM
-
Chứng nhậnISO DIN GB RoHS
-
Số mô hìnhKM-232H-304
-
chi tiết đóng góiHộp ABS 20*10*8cm/mảnh 0,45kg/mảnh
-
Thời gian giao hàngTrong vòng 15 ngày
-
Điều khoản thanh toánT/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
-
Khả năng cung cấp50000pieces/tháng
Digital Indicator High Precision Meter with SPC Output for Quality Control
Digital Indicator High Precision Meter with SPC Output for Quality Control

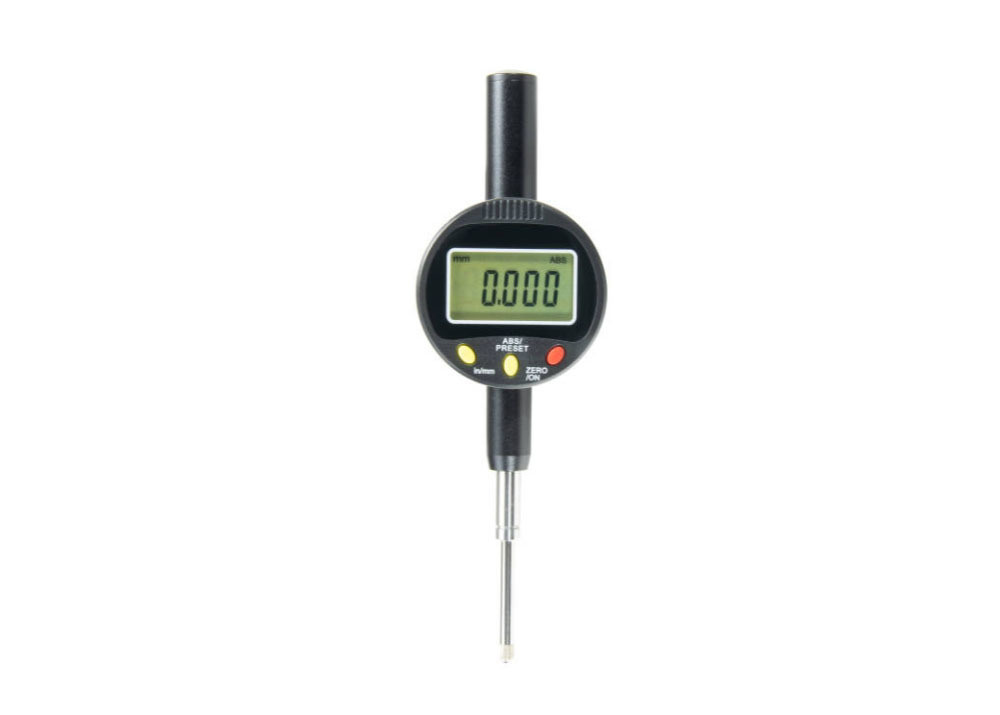

The digital indicator is primarily used to check tolerance variations during machined part inspection, measure beam or ring deflection under laboratory conditions, and other applications requiring precise small measurements.Featuring a large LCD display, this electronic digital dial indicator provides quick, accurate dimensional measurements. The clear numerical display eliminates complex calculations or conversions.This economical digital dial indicator offers metric/inch conversion, data hold, and absolute positioning capabilities, making it ideal for high-accuracy tasks.
Key Features
- Large LCD for easy reading.
- Metric/inch conversion capability.
- Absolute/incremental measurement modes.
- Power on/off function.
- Zero setting capability.
- Glass capacitive sensor.
- Aerometal main body construction.
- Data output functionality.
- Includes fitted protective case.
Specifications
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-232H-12.7 | 0-12.7mm/0-0.5″ | 0.001mm/0.00005″ | ±0.004mm |
| KM-232H-25.4 | 0-25.4mm/0-1″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-30 | 0-30mm/0-1.2″ | 0.001mm/0.00005″ | ±0.005mm |
| KM-232H-50.8 | 0-50.8mm/0-2″ | 0.001mm/0.00005″ | ±0.006mm |
Usage Precautions
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to prevent damage to appearance and precision.
- Do not operate in direct sunlight or store in extreme temperatures.
- Never connect any part of the indicator to voltage sources.
- Do not remove end lid without using output interface; avoid metal contact with output end.
- Remove battery when not in use for extended periods.
Applications
Widely used in manufacturing for precision measurement tasks including quality control, machine setup, and alignment. Common applications in automotive industry include measuring engine components, brake rotors, and tire tread depth. Also valuable in engineering for measuring material deflection or deformation under load.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,
bevel protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective accessories will be replaced promptly. Our strict calibration and inspection processes
ensure product quality.
