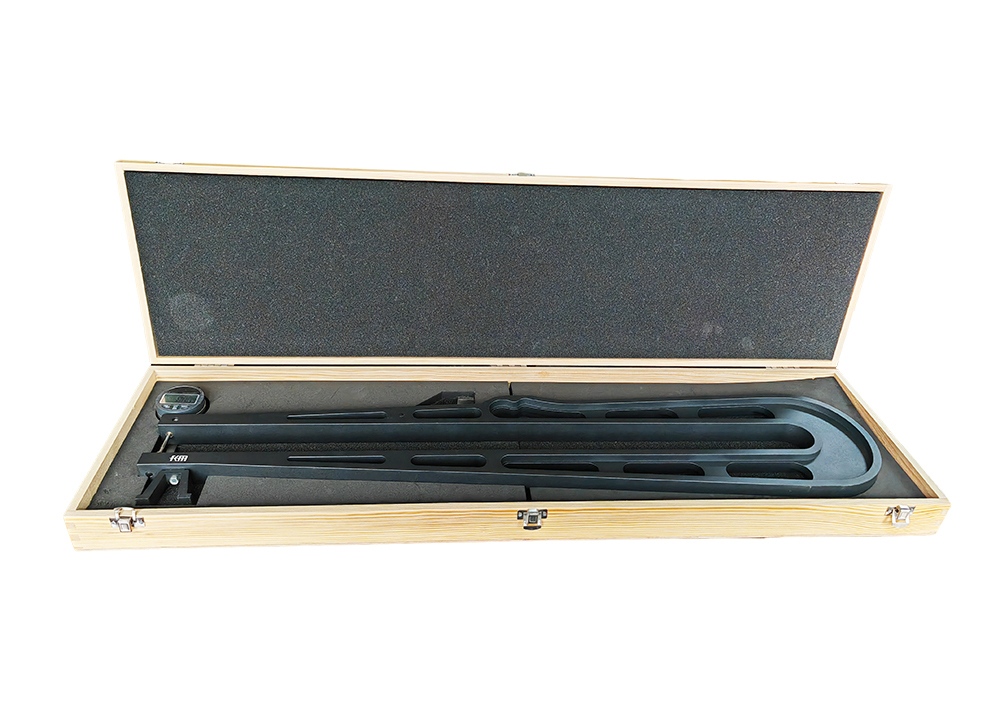

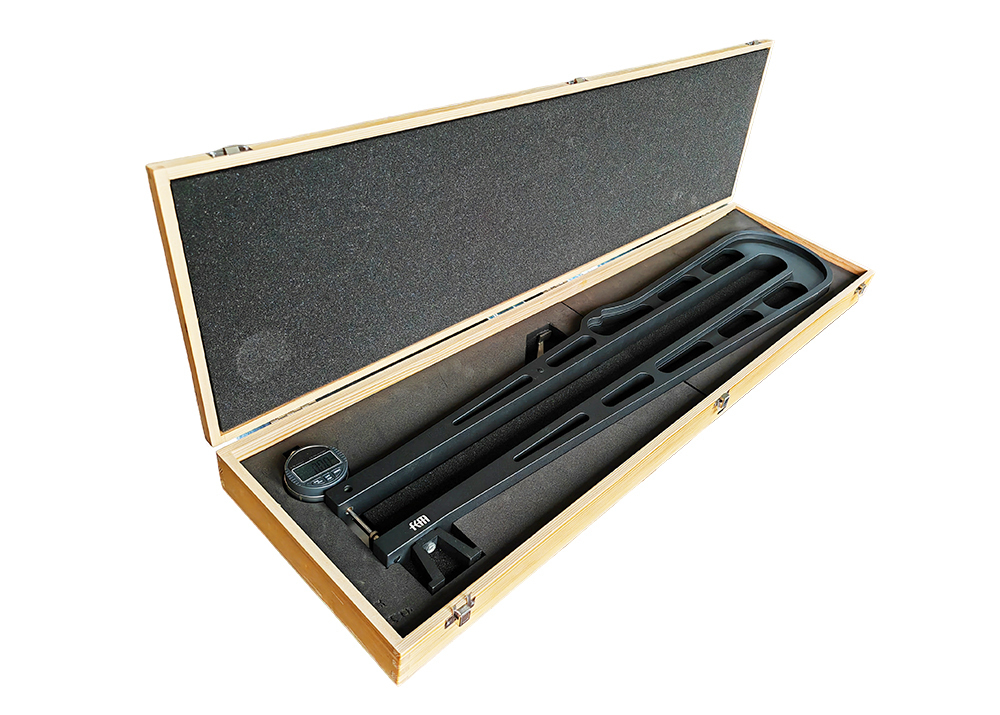

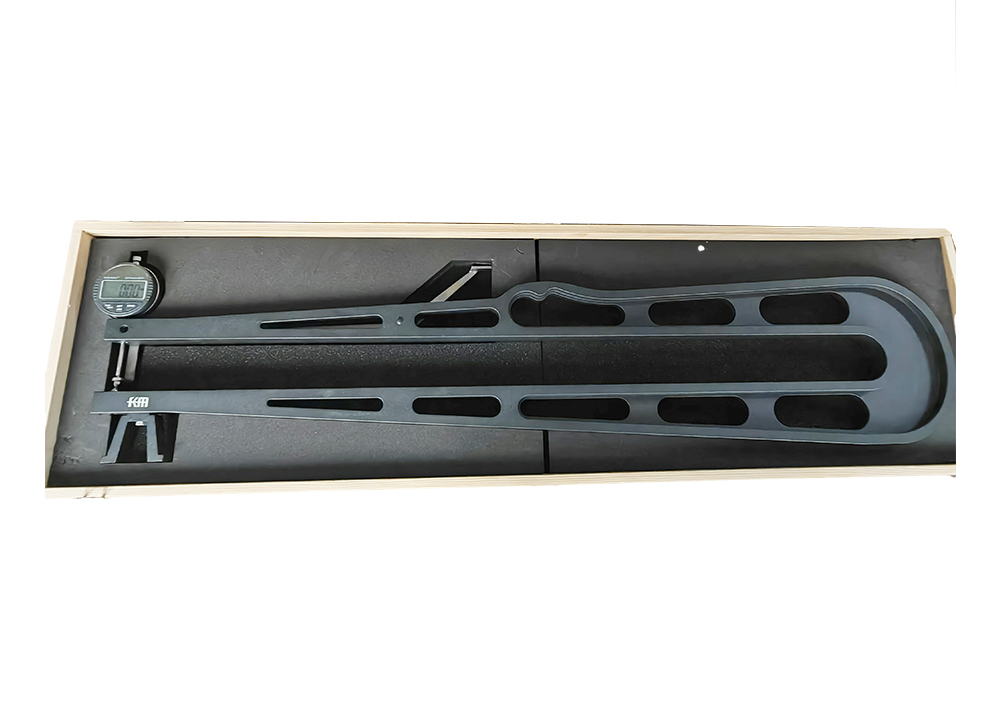

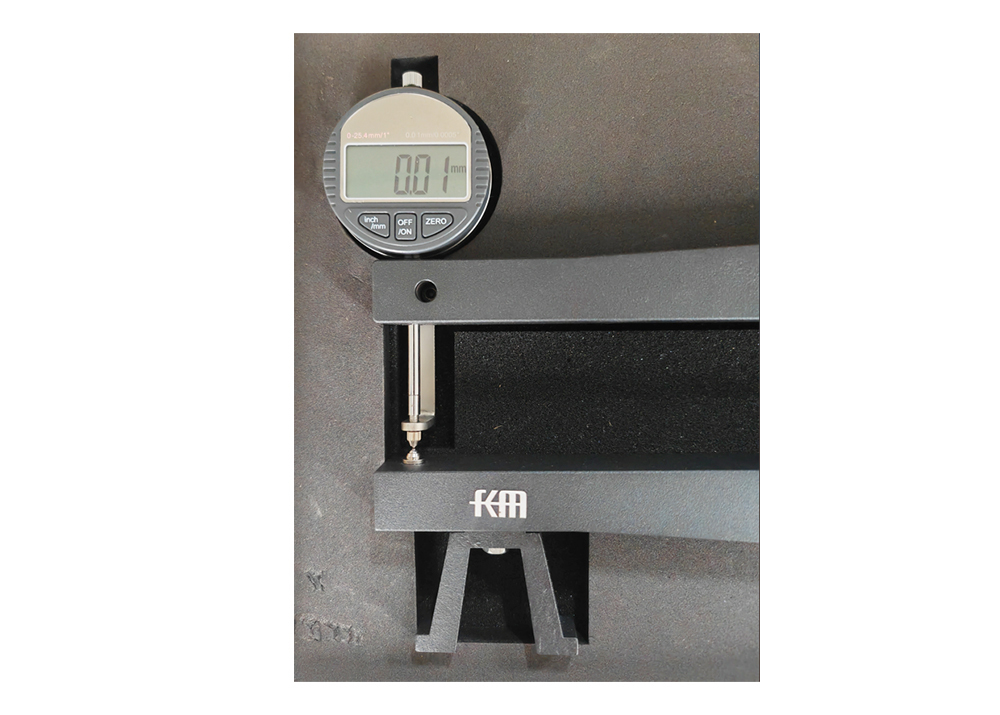

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

Sản phẩm - Máy đo độ dày - Máy đo độ dày số
  • Làm nổi bật

    800mm Digital Thickness Tester

    ,

    Electronic Dial Thickness Gauge 25.4mm

  • Bảo hành
    Một năm
  • Đo lường
    Số liệu/inch
  • Vật liệu
    Thép không gỉ
  • Đo mặt
    Hình cầu
  • Phạm vi
    0-25,4mm/0-1
  • Nghị quyết
    0,01mm/0,0005"
  • Độ sâu họng
    800mm
  • Ứng dụng
    Đo độ dày của giấy, da, cao su
  • Tính năng
    với tay cầm cầm tay thuận tiện
  • Đo mặt
    Đầu dò bằng phẳng hoặc bóng
  • Bưu kiện

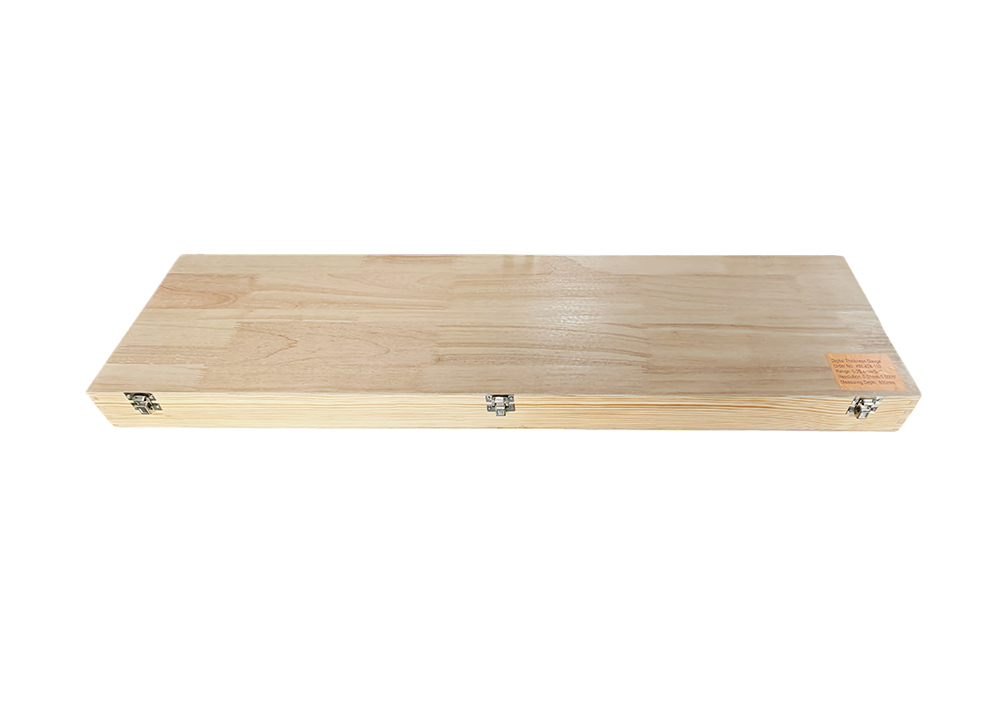

    Vỏ gỗ
  • Nguồn gốc
    Shaanxi, Trung Quốc
  • Hàng hiệu
    KM
  • Chứng nhận
    ISO DIN GB RoHS
  • Số mô hình
    KM-424-110
  • chi tiết đóng gói
    Vỏ gỗ 82*31*5cm/mảnh 3,80kg/mảnh
  • Thời gian giao hàng
    Trong vòng 15 ngày
  • Điều khoản thanh toán
    T/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
  • Khả năng cung cấp
    50000pieces/tháng

Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth

  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
  • Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
Nhận giá Liên hệ với bây giờ
Electronic Dial Thickness Gauge 25.4mm Digital Thickness Tester With 800mm Measuring Depth
This digital thickness gauge is a precision measuring tool designed for accurate thickness measurement of various materials including paper, plastic, rubber, and metal. Featuring a clear digital display, it eliminates manual reading errors and supports easy conversion between metric and imperial units.
Key Features
  • Large LCD display for easy reading
  • Zero-setting capability at any position
  • Inch/Metric unit conversion
  • Convenient power ON/OFF function
  • Ergonomic grip handle for quick measurements
  • Lifting lever for dial indicator
  • Multiple measuring face options for diverse applications
  • Choice of steel or ceramic measuring faces
  • Customizable measuring depth available
  • Includes protective fitted case
Technical Specifications
Order No. Measuring Range Resolution Measuring Depth
KM-424-001 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 30mm
KM-424-002 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 60mm
KM-424-003 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 120mm
KM-424-004 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 200mm
KM-424-005 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 300mm
KM-424-006 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 400mm
KM-424-007 0-12.7mm/0-0.5″ 0.01mm/0.0005″ 500mm
KM-424-101 0-25.4mm/0-1″ 0.01mm/0.0005″ 30mm
KM-424-102 0-25.4mm/0-1″ 0.01mm/0.0005″ 60mm
KM-424-103 0-25.4mm/0-1″ 0.01mm/0.0005″ 120mm
KM-424-104 0-25.4mm/0-1″ 0.01mm/0.0005″ 200mm
KM-424-105 0-25.4mm/0-1″ 0.01mm/0.0005″ 300mm
KM-424-106 0-25.4mm/0-1″ 0.01mm/0.0005″ 400mm
KM-424-107 0-25.4mm/0-1″ 0.01mm/0.0005″ 500mm
KM-424-201 0-50mm/0-2″ 0.01mm/0.0005″ 30mm
KM-424-202 0-50mm/0-2″ 0.01mm/0.0005″ 60mm
KM-424-203 0-50mm/0-2″ 0.01mm/0.0005″ 120mm
KM-424-204 0-50mm/0-2″ 0.01mm/0.0005″ 200mm
KM-424-205 0-50mm/0-2″ 0.01mm/0.0005″ 300mm
KM-424-206 0-50mm/0-2″ 0.01mm/0.0005″ 400mm
KM-424-207 0-50mm/0-2″ 0.01mm/0.0005″ 500mm
Industry Applications
  • Iron and steel industry: Measuring thickness of metal sheets for ships, bridges, and oil tanks
  • Chemical industry: Measuring wall thickness of containers and pipelines
  • Manufacturing: Measuring plastic products, paper, leather, rubber, fabric, and glass
  • Aerospace: Measuring thickness of aircraft and engine components
  • Automotive industry: Measuring thickness of body panels and brake discs
Usage Precautions
  • Handle with care to prevent impacts or drops that may affect accuracy
  • Keep the gauge clean and protected from liquids
  • Do not remove output port cover when not in use
  • Avoid contact with metal devices on output terminals
  • Never apply voltage to any part of the thickness gauge
  • Remove batteries during long-term storage
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
