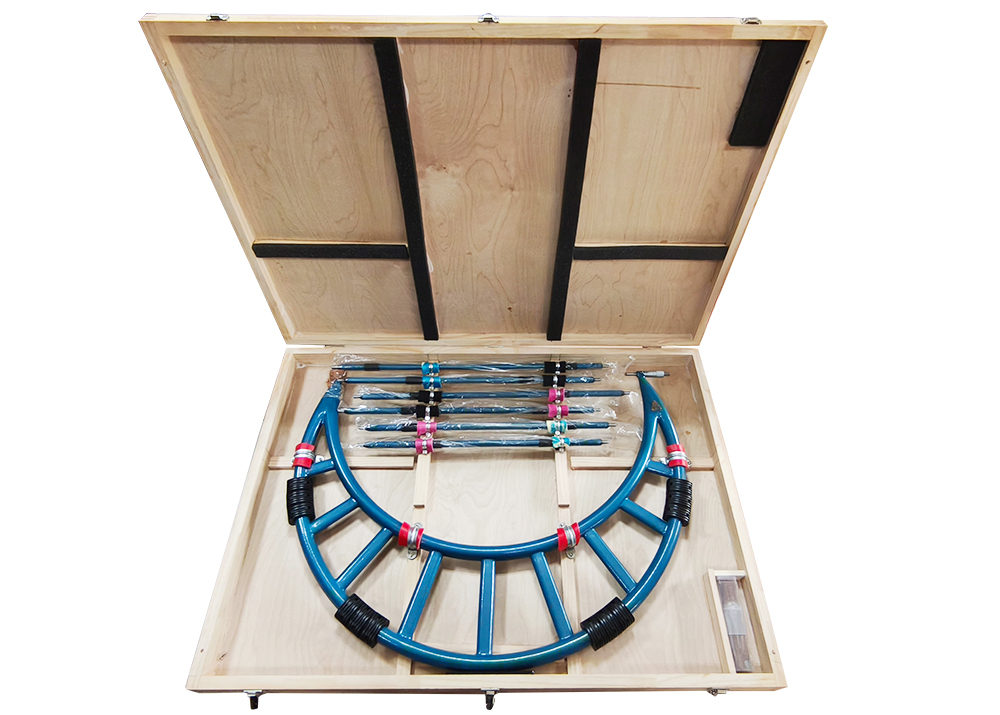

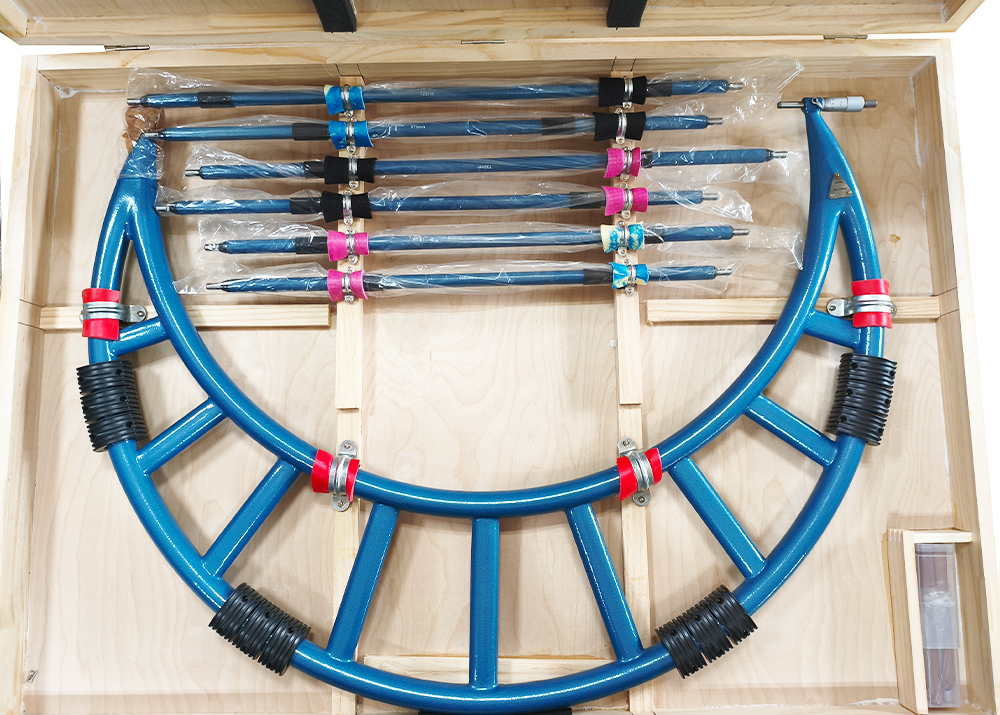

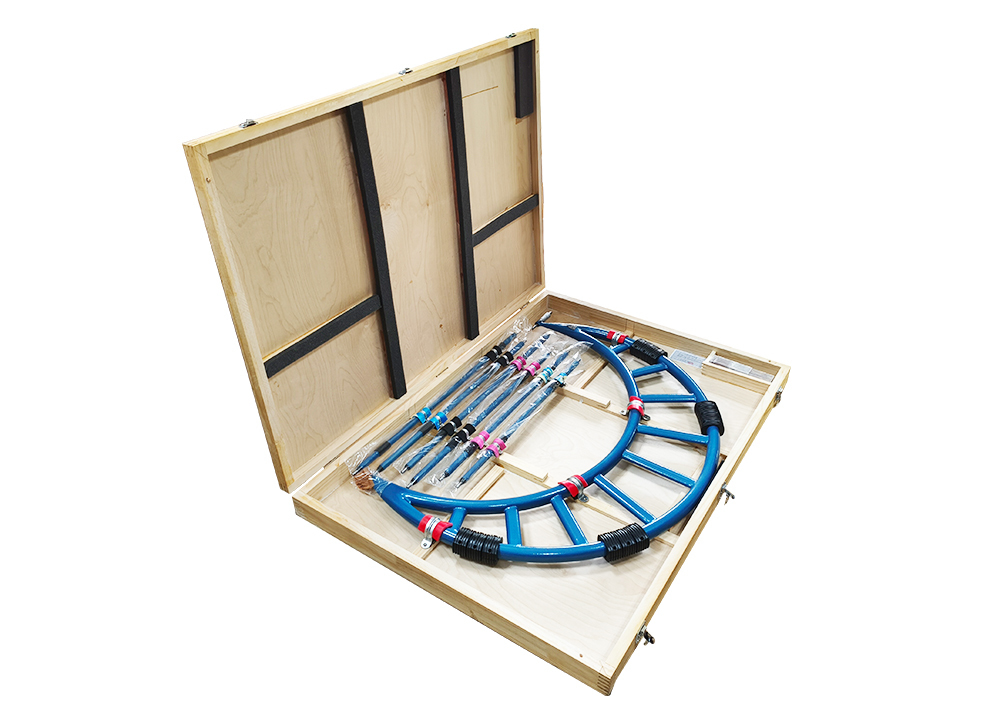

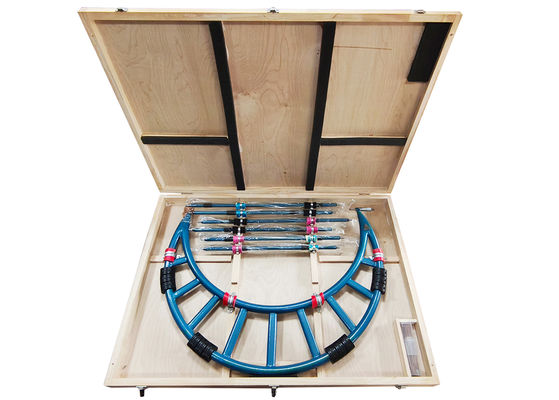

600-750mm Wide Range Outside Micrometer with Interchangeable Anvils

600-750mm Wide Range Outside Micrometer with Interchangeable Anvils

  • Làm nổi bật

    600-750mm Outside Micrometer

    ,

    Wide Range Outside Micrometer

    ,

    Interchangeable Anvil Outside Micrometer

  • Bảo hành
    Một năm
  • Đối tượng đo lường
    Đường kính bên ngoài
  • Đo lường
    Số liệu
  • Phạm vi
    600-750mm
  • Tốt nghiệp
    0,01mm
  • Sự chính xác
    ±0,016mm
  • Tính năng
    Ratchet dừng lại
  • Đo mặt
    Cacbua
  • Phương pháp đo lường
    Thủ công
  • Bưu kiện
    Vỏ gỗ
  • Nguồn gốc
    Shaanxi, Trung Quốc
  • Hàng hiệu
    KM
  • Chứng nhận
    ISO DIN GB RoHS
  • Số mô hình
    KM-2105-750
  • chi tiết đóng gói
    Vỏ gỗ 100*84*6m/mảnh 8,00kg/mảnh
  • Thời gian giao hàng
    Trong vòng 15 ngày
  • Điều khoản thanh toán
    T/T, L/C, D/P, D/A, Western Union, PayPal, Moneygram
  • Khả năng cung cấp
    50000pieces/tháng

600-750mm Wide Range Outside Micrometer with Interchangeable Anvils

600-750mm Wide Range Outside Micrometer with Interchangeable Anvils
Product Descriptions:
This digital outside micrometer features a compact design with a measuring range of 600-750mm, 0.01mm division, and ±0.016mm accuracy. It includes standard setting bars and is ideal for measuring length, outside diameters, and material thickness in construction, mechanical engineering, mold making, automotive, and furniture industries.
The micrometer features interchangeable anvils for measuring objects of different sizes and shapes. Its hardened and ground spindle with carbide anvil ensures durability and accuracy, while the ratchet thimble allows precise pressure application during measurement.
Designed for large-sized objects, this micrometer maintains stable measurement accuracy over long-term use thanks to its durable construction that resists environmental influences.
Key Features:
  • Wide measuring range with interchangeable anvils.
  • Steel-plate frame (within 300mm) or pipe combined frame (over 300mm).
  • Painted and fine cast frame.
  • Laser-etched scale for clear and easy reading.
  • Carbide measuring faces for accuracy and wear resistance.
  • Ratchet thimble for precise force application.

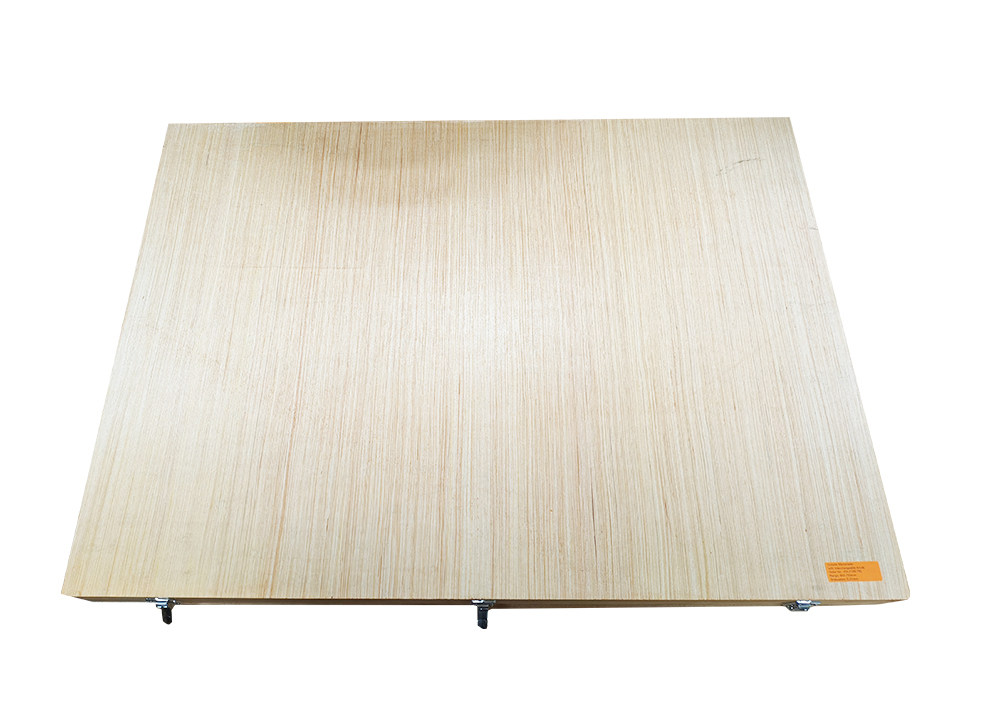

  • Supplied in fitted case.
Product Specifications:
Order No. Measuring Range Graduation Accuracy
KM-2105-400 300-400mm 0.01mm ±0.011mm
KM-2105-500 400-500mm 0.01mm ±0.013mm
KM-2105-600 500-600mm 0.01mm ±0.015mm
KM-2105-700 600-700mm 0.01mm ±0.016mm
KM-2105-800 700-800mm 0.01mm ±0.018mm
KM-2105-900 800-900mm 0.01mm ±0.020mm
KM-2105-1000 900-1000mm 0.01mm ±0.020mm
KM-2105-450 300-450mm 0.01mm ±0.011mm
KM-2105-601 450-600mm 0.01mm ±0.015mm
KM-2105-750 600-750mm 0.01mm ±0.016mm
KM-2105-901 750-900mm 0.01mm ±0.020mm
KM-2105-1050 900-1050mm 0.01mm ±0.021mm
Applications:
Outside micrometers are essential for precision measurement in engineering, machining, physics, and manufacturing. In manufacturing, they ensure part accuracy and quality. Machining applications include outer diameter measurement, dimensional verification, and roundness assessment. Automotive maintenance uses include tire diameter measurement for accurate and safe repairs.
Usage Instructions:
  1. Select the appropriate anvil size matching your measurement range and verify its accuracy against the micrometer's master ruler.
  2. Keep anvils clean during measurement to prevent dirt or scratches from affecting results.
  3. Clean the micrometer surface with a soft cloth or paper to remove dust and oil.
  4. Perform regular maintenance including cleaning and calibration to ensure measurement accuracy and stability.
